Instrumentation Products

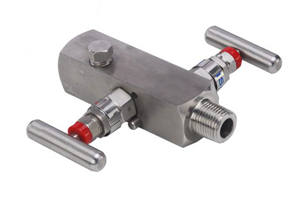

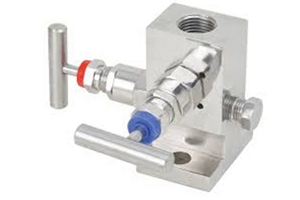

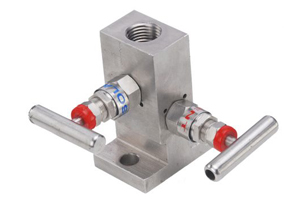

2 Valve Manifold
4 - 4
<
>

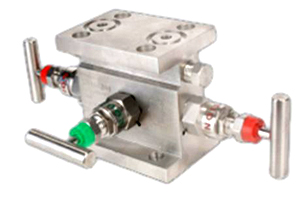

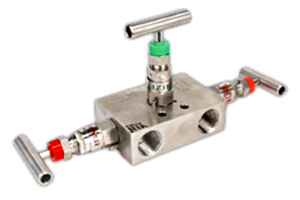

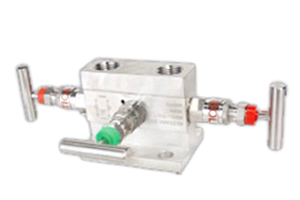

3 Valve Manifold
3 - 3
<
>
Features:
One Isolation valve and One Vent Valve for vent / drain
Pressure rating up to 10000 psig at 370C
Temperature rating from -540C to 2320C with PTFE packing
Screwed double bonnet assembly with metal to metal body to bonnet seal
Non Rotating Hardened metal Stem tip design to ensure positive sealing
Variety of MOC options SS 316, Monel 400 and Duplex Material
Grafoil Stem Packing option is available to meet high temperature applications
Port sizes available from ¼” Size to ¾”
Stainless Steel Bar handle, Handle Options are available.
Locking pin to avoid accidental removal in service
Standard mounting holes provides flexibility for wall / bracket mounting installations
Optionally available with NACE MR-01-75 compliance
Variety of end connections include Tube fitting end, Male/Female NPT and ISO threads
Dust and Thread caps provided for ingress dust protection.
Features:
Two Isolation valve and One Equalizing
Pressure rating up to 10000 psig at 370C
Temperature rating from -540C to 2320C with PTFE packing
Screwed double bonnet assembly with metal to metal body to bonnet seal
Non Rotating Hardened metal Stem tip design to ensure positive sealing
Variety of MOC options SS 316, Monel 400 and Duplex Material
Grafoil Stem Packing option is available to meet high temperature applications
Port sizes available from ¼” Size to ¾”
Stainless Steel Bar handle, Handle Options are available.
Locking pin to avoid accidental removal in service
Standard mounting holes provides flexibility for wall / bracket mounting installations
Optionally available with NACE MR-01-75 compliance
Variety of end connections include Tube fitting end, Male/Female NPT and ISO threads
Dust and Thread caps provided for ingress dust protection

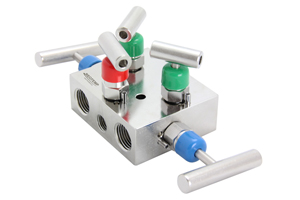

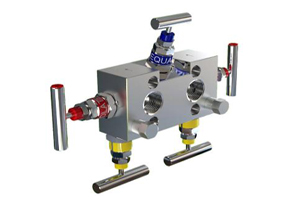

5 Valve Manifold
3 - 3
<
>
Features:
Two Isolation valves and One Equalizing valve and Two Vent valve
Pressure rating up to 10000 psig at 370C
Temperature rating from -540C to 2320C with PTFE packing
Screwed double bonnet assembly with metal to metal body to bonnet seal
Non Rotating Hardened metal Stem tip design to ensure positive sealing
Variety of MOC options SS 316, Monel 400 and Duplex Material
GrafoilStem Packing option is available to meet high temperature applications
Port sizes available from ¼” Size to ¾”
Stainless Steel Bar handle, Handle Options are available.
Locking pin to avoid accidental removal in service
Standard mounting holes provides flexibility for wall / bracket mounting installations
Optionally available with NACE MR-01-75 compliance
Variety of end connections include Tube fitting end, Male/Female NPT and ISO threads
Dust and Thread caps provided for ingress dust protection
